2019 Schwing SP 500 Trailer Pump
Sold
2019 Schwing SP 500 Trailer Pump
$100,000 (USD)
Description

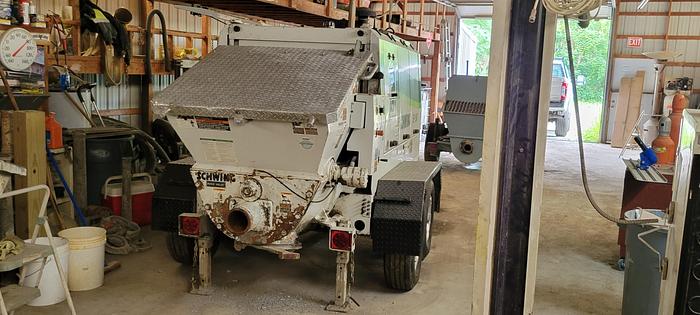

Well-maintained 2019 Schwing SP 500 trailer pump. Only 1745 pump hours. Pumps grout, shotcrete and structural concrete with outputs up to 45 yards per hour.
Description

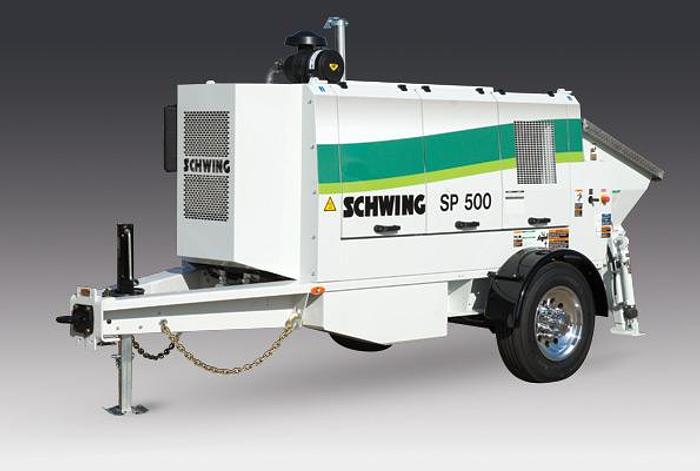

With the Schwing SP 500 trailer pump, you’ll invest in an all-hydraulic concrete pump that incorporates big pump features into a compact, economical package. The SP Series
trailer pumps
are excellent entry level, all-around performers as well as seasoned professional machines pumping grout, shotcrete and structural concrete with outputs up to 45 yards per hour and pumping pressure up to 1568 psi. At the heart of these concrete pumps is the Rock Valve™. With the lowest operating cost per yard, the Rock Valve™ is your guarantee of profitable pumping of the harshest mixes. This is the only sequencing valve that is completely rebuildable adding to long term reliability and maximum utilization.
This open loop all-hydraulic
concrete pump
sets the standard for fuel-efficiency, reliability and performance. The Rock Valve™ pumps the harshest mixes at the lowest operating cost and cleans up faster with less water. Symmetrical Switching equalizes pressures in the concrete pump for smoother, quieter operation. More on the
Schwing website
.
Detailed SP500 Specs
Specifications
Manufacturer | Schwing |
Condition | Used |
Concrete Output Per Hour | 45 cu yds |
Maximum Pressure on Concrete | 1100 psi |
Maximum Aggregate Size | 1.5 in |
Concrete Cylinder Diameter | 6 in |
Concrete Cylinder Stroke Length | 39 in |
Differential Piston/Rod Diameter | 3.15/1.96 in |
Outlet Diameter | 5 in |
Concrete Valve Type | Long Rock™ |
Shifting Cylinders | 2 |
Max. Pump Strokes Per Minute | 32.5 |
Volume Control | 0 to Maximum |
Hydraulic System | Open Loop |
Main Hydraulic Pump | A11VO95 |
Hydraulic Pressure | 3867 psi |
Hydraulic Tank Capacity | 53 gal |

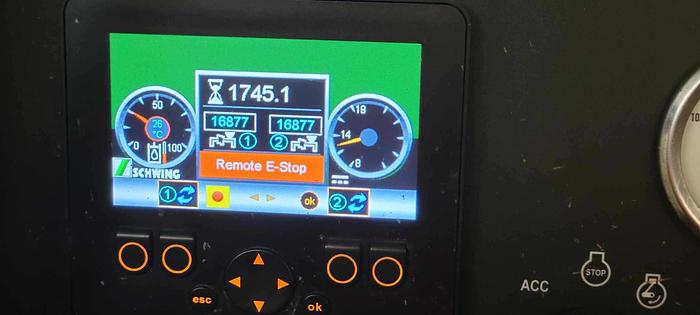

Pump Hours | 1745 |
Pump Year | 2019 |
